ATM12232B

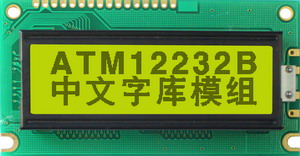

Product photo:
 		 Dimension:   84x44x15
V.A:   64.0x17.9
Dotsize:   0.44x0.49
Dotpitch:   0.40x0.45
Controller/Driver   ST7920, ST7921
  122 x 32 Dots
  1/32 Duty, 1/6 Bias
  OPTIONS FOR SERIES

PORLARIZER Type
 R=Reflective
F=Transflective
M=Transmissive, Positive
N=Transmissive, Negative
BACKLIGHT TYPE
 L=LED backlight (array)
S=LED backlight (side)
E=EL backlight
Backlight colors
a=amber
B=blue
g=green
r=red
y=yellow-green
w=white

TEMPERATURE
S = 0~50 C
W = -20 ~ 70 C
other

LCD PANEL
T = TN type
G = STN gray type
Y = STN yellow-green type
B = STN blue type
F = FSTN type
VIEWING ANGLE
B=Bottom View ( 6:00 )
T=Top View ( 12:00 )
IC Font
— = English/Japanese
B = English/European (W)
E = English/European (E)
R = English/Hebrew
T = English/Russian
